How to Punch Down a Keystone Jack
If you have never seen the back of a network wall outlet, start here. Every part and every action is shown separately.
Horizontal Cat5e/Cat6/Cat6A cable, a compatible keystone jack, cable stripper and the jack's specified punch/termination tool.
Insulation Displacement Contact. The wire normally goes into the slot with its coloured insulation still on.
Different jack designs use different wire managers and tools. The manufacturer's printed colour code and instructions are the final authority.

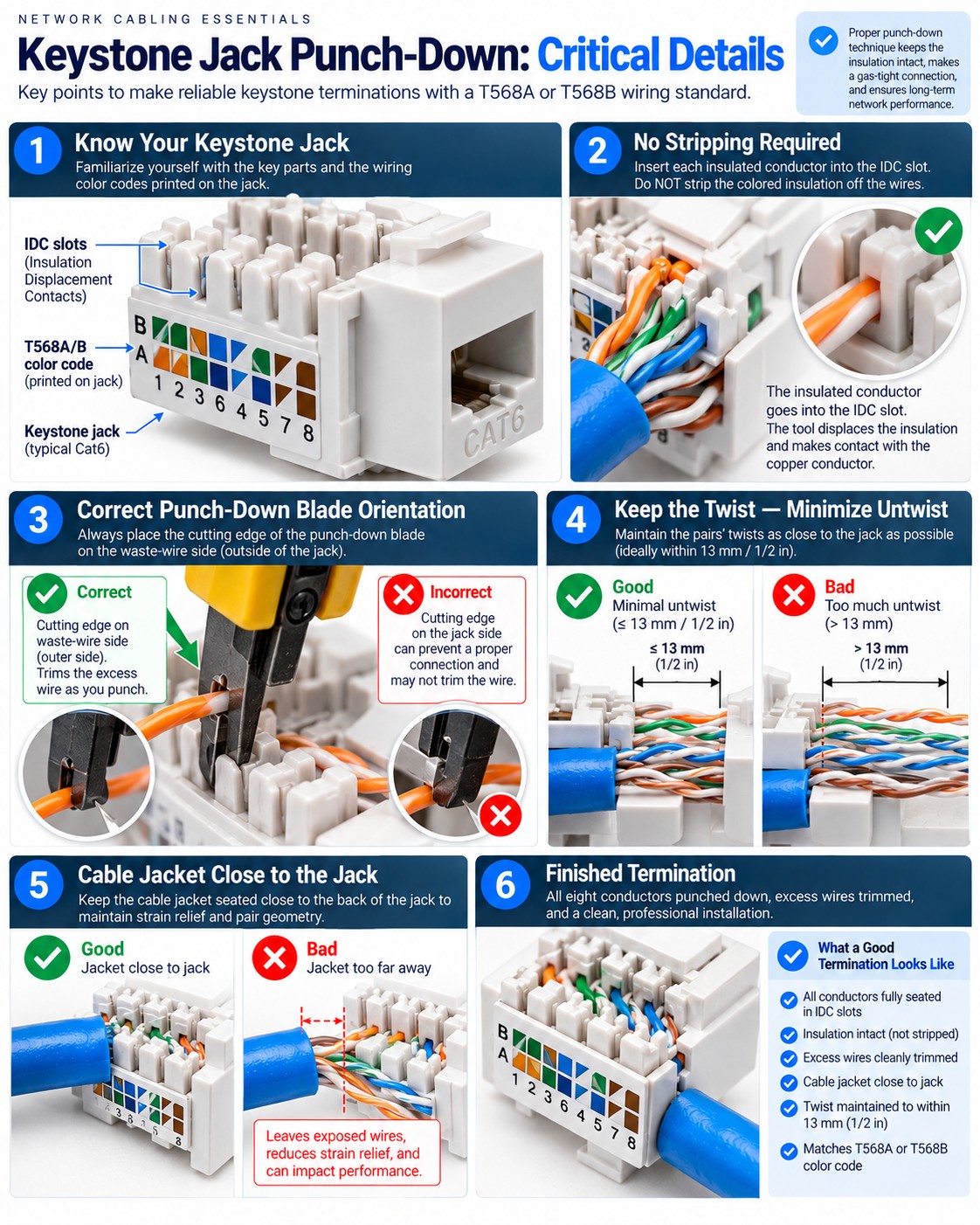

See the complete job before working through the steps
Know the cable, jack and punch tool
The jack contains slots called IDC contacts. You are going to place each insulated conductor into the correct slot, then use the tool to seat it.
Strip the jacket but leave the twisted pairs twisted
Remove only enough outer jacket to work with the jack. Do not straighten 100 mm of conductor. The twist is part of the cable's electrical performance.
Read the colour code printed on the jack
Most data jacks show both T568A and T568B. Choose the scheme used by the project and follow that row. Do not guess the slot from a plug diagram while the jack is upside down.
Lay each conductor into its correct IDC slot
The conductor's coloured insulation stays on. Keep the pair twisted until close to the jack, separate only what is required and place the wire fully into the slot.
Put the cutting edge of the punch tool on the waste side
This is the detail beginners often cannot see in a small diagram. The cutting edge must trim the short waste tail outside the jack. If the cutting edge faces the cable side, it can cut the conductor you wanted to keep.
Inspect the finished termination
The cable jacket should be close to the jack, the pairs should remain twisted close to the IDC, and each conductor should be fully seated. Close the jack or strain-relief cap as its manufacturer specifies.
What a beginner should reject immediately
IDC contacts are designed to displace the insulation themselves.
This increases crosstalk risk and indicates poor workmanship.
The colours are in slots for the wrong wiring scheme.
The tool cuts the live cable side instead of the waste tail.
The loose conductors take mechanical stress instead of the cable jacket.
You should now be able to
- Identify a keystone jack and IDC slots.
- Explain why the conductor insulation stays on.
- Follow the T568A or T568B legend printed on the jack.
- Keep pair twist close to the termination.
- Orient a traditional punch-down blade correctly.
- Recognize good and bad finished workmanship.
